Materials for Produced Water Systems (With PDF)

Materials for surface facilities:

  • Piping: GRE, FBE coated CS / HDPE lined CS, DSS / SDSS
  • Well hook-up: FBE coated CS, DSS / SDSS
  • Bulk injection lines: HDPE lined CS, GRE
  • Injection flowlines: Coated CS, HDPE lined CS, GRE
  • Valves: bodies DSS / SDSS or CS with coating or 825 / 625 weld overlay; trim DSS / SDSS
  • Pumps: bodies & impellors DSS / SDSS

Materials for sub-surface facilities:

Tubing: Coated CS, GRE lined CS

Metallic materials for piping & well hook-up:

  • DSS / SDSS
    • DSS PREn > 34
    • SDSS PREn > 40
  • Coated CS
  • FBE-coated pipe, spools & fittings
  • HDPE lined CS
  • Loose-fit liner and roto-lined spools & fittings

Metallic materials for valves & pumps:

  • Valves: CS, CS with 825 / 625 overlay for Bodies; & DSS / SDSS, 825 for trim
  • Pumps: CS, CS with 825 overlays for Bodies & DSS / SDSS impellors

Non-metallic materials:

GRE:

  • First used in 1982 for low-pressure water systems and fire fighting systems
  • >1300 km GRE pipelines, 113 km water service & remainder in multiphase service
  • On-plot piping

Successful use requires:

  • Proper design: standards (ISO/company), qualification testing, stress analysis (supports/anchors), eliminate vibration
  • Manufacture: QC during production
  • Installation: experienced crews, supervision & inspection

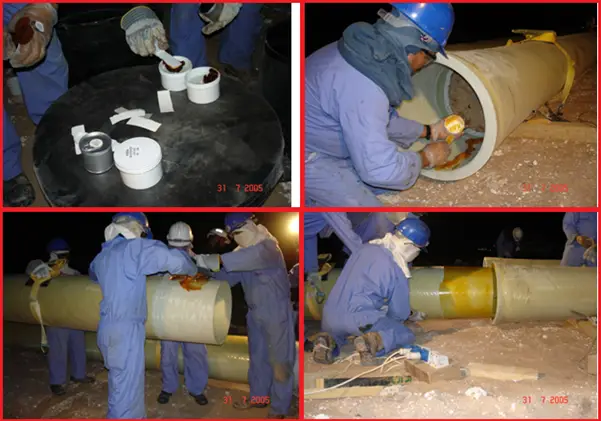

Installation of adhesively bonded joint (Fig. 1):

Installation of adhesive bonded joint
Fig. 1: Installation of adhesive-bonded joint

GRE Failures:

Most occur during installation due to:

  • Poor workmanship
  • Insufficient anchoring
  • Poor flange alignment

In-service failures are rare & only 2 have occurred: One involved a flowline and the second was on a flange connected to a pump

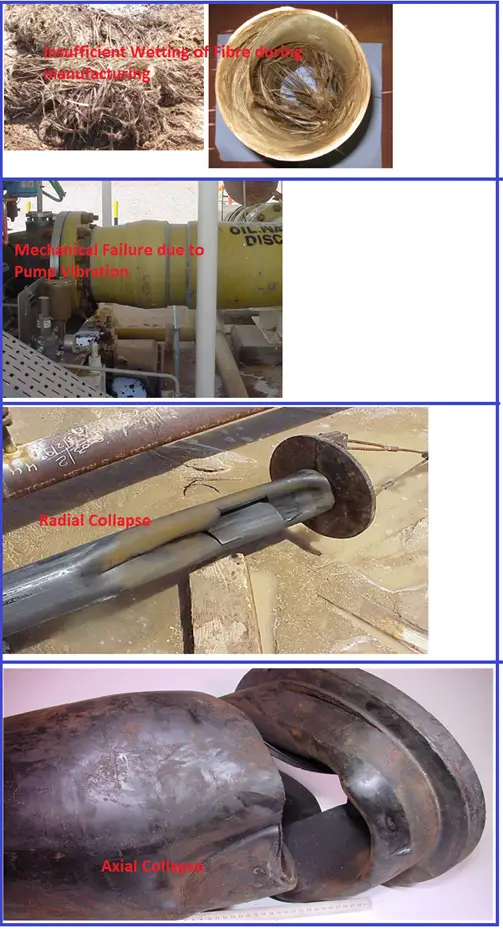

In service failures (Fig. 2):

  1. 6” production flowline operating at 5 bar and 60 deg C with > 98% water-cut failed after 4 years due to Insufficient wetting of fibers during manufacture.
  2. Flange on 250 mm diameter piping in oil service directly connected to a pump cracked causing a leak due to pump vibration causing mechanical failure at the flange/pipe interface

HDPE:

  • The loose-fit liner has been used for water injection lines since 1988
  • >205 km HDPE lined CS pipelines in water service
  • Rotolined spools and some HDPE-lined CS pipe are used for on-plot piping
  • No limit on pressure; the temperature is 70 deg C for the liner, and 60 deg C for rotolined spools

Successful use requires:

  • Proper design & installation: standards (company)
  • Installation: experienced crews/supervision for butt fusion welding of pipe & flanges, & for applying correct tension
Examples showing failures for GRE and HDPE
Fig. 2: Examples showing failures for GRE and HDPE

Failure modes:

  • Radial collapse: HDPE liner collapses inwards radially due to vacuum conditions occurring during the shutdown procedure or a pressure build-up in the annulus between the liner and the CS pipe.
  • Axial collapse: HDPE liner buckles inwards due to compressive axial stress resulting from differences in thermal expansion between the steel pipe and the PE liner itself.
