Slug Flow Analysis Using Dynamic Spectrum Method in Caesar II

The basics of slug flow, Calculation of Slug forces, and static analysis methodology in Caesar II are provided in my last article titled “Static Analysis of Slug Flow”. Click here to read the same. In this article, We will explain the methods for performing the slug flow analysis using the Dynamic Spectrum Method of Caesar II Software.

Reason for Dynamic Slug Flow Analysis of Piping System?

The system responses are very much different with respect to dynamic slug loads as compared to a static load of the same magnitude. As static load is applied slowly, the piping system gets enough time to internally distribute the loads and react, resolving the forces and moments and keeping the system in equilibrium. Hence, the pipe movement is not visible.

On the other hand, a dynamic slug load quickly varies with respect to time and hence the piping system does not get sufficient time to distribute and resolve the forces. This results in an unbalanced slug force that leads to pipe movement. So it’s always preferable to perform dynamic analysis when dynamic loads are involved to get real analysis results.

Dynamic Slug Flow Module of Caesar II

For performing dynamic slug flow analysis, Caesar II software provides a very nice module, dynamic analysis module where we have to simply provide the input parameters to get the output result. In the following paragraphs, we will learn the steps for performing Dynamic Slug Flow using Water Hammer/ Slug Flow (Spectrum) method.

Before you start the dynamic slug flow analysis you have to perform a conventional static analysis of the system (without using any slug force) and qualify the system from all stress criteria (Thermal, Sustained, Occasional, as applicable).

To open the dynamic module in Caesar II click on the dynamic analysis button as shown in Fig.1.

Opening Dynamic Module
Fig. 1: Opening the Dynamic Module in Caesar II

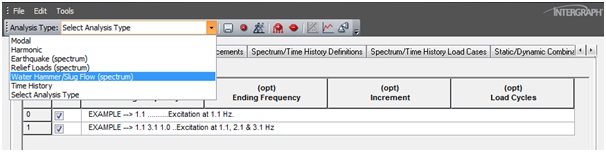

When you click on the dynamic analysis button following window (Fig.2) will open. Select Slug Flow (Spectrum) from the drop-down menu. The window will be filled with some pre-existing data. For clarity simply select all those and delete them. Now we have to provide inputs for analysis.

Selecting Slug Flow Module in Caesar II
Fig. 2: Selecting Slug Flow Module in Caesar II

During dynamic slug flow analysis, our first input will be the generation of a response spectrum profile. Slug load is one type of impulse load. So the magnitude of the load varies from zero to some maximum value, remains constant for a time, and then reduces to zero again. The force profile can be represented by a curve as shown in Fig. 3.

Graphical Representation of Slug Force Profile
Fig. 3: Graphical Representation of Slug Force Profile

So from the above profile, it is clear that in addition to the slug force (Refer to Static method of Slug Flow using Caesar II for calculation of slug force), we need to calculate two additional parameters, a) Slug Duration and b) Slug Periodicity.

READ  Modeling Relief Valve (Pressure Safety Valve) Thrust force

Slug Duration

Slug duration is defined as the time required for the slug to cross the elbow. Mathematically it can be denoted as, Slug Duration=Length of Liquid Slug/Velocity of Flow.

Slug Periodicity

Slug Periodicity can be defined as the time interval for two consecutive slugs hitting the same elbow. So mathematically it can be denoted as Slug Periodicity = (Length of Liquid Slug + Length of Gas Slug)/Velocity of Flow.

Generating Spectrum Profile for Slug Flow

Let’s assume that the calculated slug duration is 8 milliseconds and periodicity is 400 milliseconds as shown in Fig. 3. We will use these data for the generation of spectrum profiles.

Now Refer to Fig. 4 and input the data as mentioned below:

Generation of Spectrum Profile for Slug flow Analysis
Fig.4: Generation of Spectrum Profile for Slug Flow Analysis

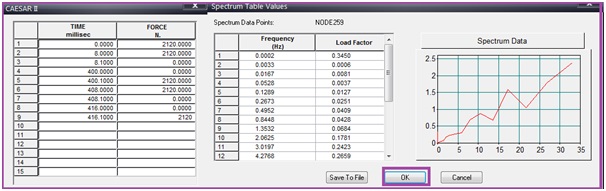

When you click on Enter Pulse data it will open the window where we have to enter the data for spectrum profile generation. From the above curve at time 0 the force is 2120 N the same force will be active for the next 8 milliseconds till the slug crosses the elbow. Then at time, 8.1 millisecond forces will be reduced to zero. And the same zero force will be there till 400 milliseconds. Then the next cycle will start. i.e., at time 400.1 milliseconds, the force will be again 2120 N. That way enter data for at least two cycles as shown in Fig. 5:

Typical Spectrum Profile for Slug flow Analysis
Fig.5: Typical Spectrum Profile for Slug Flow Analysis

Clicking the Save / Continue button will convert the time history into its equivalent force response spectrum in terms of Dynamic Load Factor versus Frequency and the screen “Spectrum Table Values “as shown in Fig. 5 will appear.

READ  ASME Section VIII Flange Leakage Checking Method in Caesar II

Be sure to specify a unique spectrum name, as this processor will overwrite any existing files of the same name.

By clicking OK, the processor will load the appropriate data in the Spectrum Definitions tab in Dynamic Input and move the data to the Dynamic Input.

Once the spectrum profile is generated click on the force sets button and enter the slug force with the proper direction in the fields as shown in Fig. 6:

Entering slug forces for dynamic slug flow analysis.
Fig.6: Entering slug forces for dynamic slug flow analysis.
  • Click on the + button to add more rows and the – buttons to delete rows.
  • In the force set field, input a numeric ID which will be used to construct dynamic load cases.

Creating Dynamic Slug Flow Load Cases for Analysis

After that, click on the Spectrum load cases menu and create the required load cases for dynamic analysis. You have to specify at least two load cases as shown.

  • Operating + Dynamic for nozzle and support load checking.
  • Sustained + Dynamic for stress checking.

Refer to Fig. 7 for load case preparation

Load Case preparation for dynamic slug flow analysis
Fig. 7: Load Case preparation for dynamic slug flow analysis

Finally, click on the control parameters button and select the load case for which you want to perform the analysis. Normally operating load case is selected (Refer to Fig. 8) for dynamic analysis. Keep all other parameters as it is. Now click on batch run to obtain the analysis results. Fig 9 shows typical analysis results.

Selecting the load case for slug flow analysis
Fig.8: Selecting the load case for slug flow analysis

Output Results from Dynamic Slug Flow Analysis

Typical Output Reports
Fig. 9: Typical Dynamic Slug Flow Output Reports
  • Fig. 9 shows a typical output screen for dynamic slug flow analysis in Caesar II.
  • The highlighted node 10 is for the nozzle.
  • All support and nozzle loads are to be checked.
  • Stresses are to be kept below code allowable values.
  • The highlighted direction sign will show other load case combinations.
READ  What are Slip Joints in Piping?

Some Important Points to Consider

  1. Piping vibration due to any two-phase flow can be reduced/arrested by proper support of the piping system. Normally following supports are used:
  • HOLD DOWN SUPPORTS WITH 0 GAP
  • GUIDE SUPPORTS WITH 0 GAP
  • AXIAL STOPS WITH 0 GAP

Whenever modifying any support perform static analysis and keep the system stresses within the allowable limit.

  1. Sometimes vibration-absorbing material (like PTFE) is used to reduce the transfer of vibration to connected systems.
  2. It is preferred to keep the natural frequency of the piping system above 4 Hz for Vibration-prone lines.
  3. The formation of Slug Flow can be reduced by
    • By reducing line sizes to a minimum permitted by available pressure differentials.
    • By using a low-point effluent drain or bypass.
    • By arranging the pipe configurations to protect against slug flow. E.g. in a pocketed line where liquid can collect, slug flow might develop. Hence pocket is to be avoided.
    • By Installing a Slug Catcher

Online Course on Dynamic Slug Flow Analysis

If you still have doubts, then the following online course is just perfect for you:

Some handpicked useful resources for you…

Static Analysis of Slug flow
How to Model Slug Flow Loads
An Introduction to Pressure Surge Analysis
Understanding Centrifugal Compressor Surge and Control
Load Cases for Stress Analysis of a Critical Piping System Using Caesar II
Water Hammer Basics in Pumps for beginners
Pipe Stress Analysis from Water Hammer Loads

Anup Kumar Dey

I am a Mechanical Engineer turned into a Piping Engineer. Currently, I work in a reputed MNC as a Senior Piping Stress Engineer. I am very much passionate about blogging and always tried to do unique things. This website is my first venture into the world of blogging with the aim of connecting with other piping engineers around the world.
