PSV or pressure safety valves (pressure relief valves) are a type of valve and are very common in any process industry. To protect any equipment from overpressure PSV systems are used in lines. When the pressure inside the system/equipment exceeds a pre-determined level (normally Set Pressure), they are activated automatically and release the pressure by popping up and bringing the equipment pressure to a safe operating level.
Two types of PSVs are extensively used in process industries:
Open discharge PSV
Closed discharge PSV
Are PSV Connected Systems Critical?
Due to an uncertain event if the pressure of any equipment becomes higher than the set pressure of the installed PSVs then they pop up and reduce the system pressure. During popping-up activity, the PSVs exert a huge reaction force over the system. During the analysis of PSV-connected stress systems, we have to consider this reaction force. This is the main reason that PSV-connected systems become stress-critical. The following write-up will try to explain the methods used during the analysis of such systems using Caesar II. Click here to gain in-depth knowledge about pressure relief valves.
Required Documents for Stress Analysis
The following documents are required for PRV system stress analysis using Caesar II.
PSV datasheet with reaction force and PSV weights.
Equipment GA and datasheet if the equipment is part of the stress system.
PSV Reaction Force Calculation & Application Philosophy
Before we start the actual analysis we should first know the reaction force. Normal practice is to obtain the reaction force from the PSV vendor or manufacturer. However if during the preliminary stage of analysis, data is not available then the reaction force for open discharge PSVs can be calculated using the below-mentioned formula (from API RP 520) for gaseous/vapor services. But later it must be corrected for forces received from the vendor.
Fig. 1: Typical Open Discharge PSV Connection
PSV Reaction force at the point of discharge for Gas Services in lbf, F=[(W/366)* √{K*T/(K+1)*M}]+A*P
Here, W=flow of any gas or vapor in lbm/hr
K=ratio of specific heats (Cp/Cv) at the outlet condition
T=temperature at the outlet in Degree R
M=molecular weight of the process fluid
A=area of the outlet at the point of discharge in inch^2
P=Static pressure within the outlet at the point of discharge in psig.
Cp and Cv=Specific heat at the constant pressure and at constant volume respectively.
For liquid services, the PSV reaction force (FR) due to the outflow of PSV (or PRV) can be calculated following the AD 2000-Merkblatt standard A2-Safety Devices against Excess Pressure (Clause 6.3.3) using the following equations (momentum theory):
PSV/PRV Reaction Force for Liquid Services in N, FR=(qm*vn/3600)
Where,
qm=Mass flow in Kg/hr
vn=velocity in the blowout opening=(qm*106)/(3600*ϱn*An)
ϱn=density of the fluid in the blow-out opening at the end of the pipe in kg/m3
An= Clear cross-sectional area at blow out end of the line in mm2
For closed-discharge PSV systems, there is no specific method to calculate the reaction force. Complex time history analysis can be used to calculate the reaction force for closed-discharge PSV systems.
Parameters Affecting Pressure Relief Valve Reaction Force
From the above equations, it is quite clear that the main parameters that affect the PSV/PRV reaction forces are:
Mass Flow Rate: With an increase in mass flow rate the PSV reaction force increases.
Outlet Temperature: With an increase in the PRV outlet temperature, the reaction force of the pressure relief system increases for the gaseous medium. However, for liquid medium, the PSV reaction force is not dependent on temperature.
PSV Size: With an increase in the PSV size, the PSV reaction forces increase.
The ratio of Specific Heats(Cp/Cv): For gas/vapor systems the increase in specific heat ratio, increases the pressure safety valve reaction force value.
Pressure
Fluid Density
Velocity, etc
Applying PSV Reaction Force
The reaction force application philosophy for open discharge PSV (PSV output discharges into the atmosphere) connected systems is the same throughout the process industries. But for closed discharge, PSV connected system the force application philosophy varies from organization to organization. Some organization applies the reaction force for closed discharge PSVs but some organizations do not consider it. So users need to follow the company-specific project guidelines in such cases.
The following figure (Fig. 2) shows the points where the reaction force is required to be applied for open discharge PSVs.
Fig.2: Reaction force Application point for open discharge PSV connected systems
Fig. 3 shows the application point (If required) of reaction forces for closed discharge PSV connected systems.
Fig.3: Reaction force Application point for Closed discharge PSV connected systems
Caesar II Load Cases for PSV Connected Systems:
PSV forces are considered occasional forces. So occasional Stress due to PSV reaction force has to be calculated and to be limited within 1.33 times Sh (As per code ASME B31.3). Here Sh=Basic allowable stress at hot conditions. Based on company practice PSV reaction force is added either with a design temperature case or with an operating temperature case. Also, some organizations have the practice of making One PSV pop up and others stand by load cases. Accordingly, make the load cases as shown below:

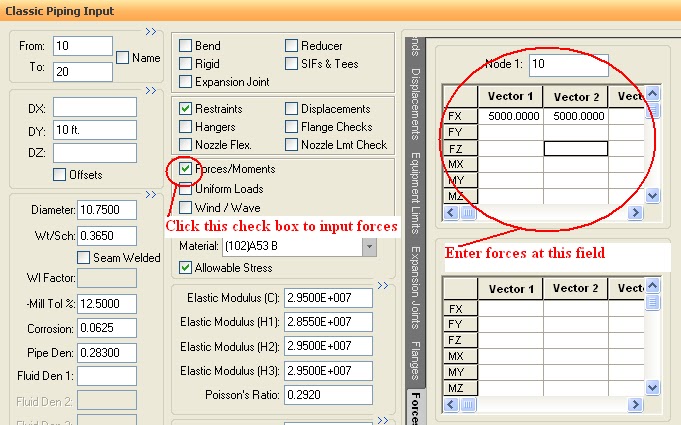

Fig.4: Caesar II methodology to enter the reaction force
Fig.5: Caesar II simple load cases for analysis PSV connected system
The following load cases assume two temperatures (T1= operating temperature, T2= design temperature) along with Wind and Seismic load cases:
Load Case
Stress Type
Description
L1
WW+HP
HYD
Hydrostatic Case
L2
W+T1+P1
OPE
Operating temperature case
L3
W+T2+P1
OPE
Design temperature case
L4
W+T1+P1+F1
OPE
Operating temp+PSV reaction ( PSV 1 popping up)
L5
W+T1+P1+F2
OPE
Operating temp+PSV reaction ( PSV 2 popping up)
L6
W+T1+P1+WIN1
OPE
Operating temp+Wind from North
L7
W+T1+P1+WIN2
OPE
Operating temp+Wind from South
L8
W+T1+P1+WIN3
OPE
Operating temp+Wind from East
L9
W+T1+P1+WIN4
OPE
Operating temp+Wind from West
L10
W+T1+P1+U1
OPE
Operating temp+Seismic from North
L11
W+T1+P1-U1
OPE
Operating temp+Seismic from South
L12
W+T1+P1+U2
OPE
Operating temp+Seismic from East
L13
W+T1+P1-U2
OPE
Operating temp+Seismic from West
L14
W+P1
SUS
Sustained case
L15
L4-L2
OCC
Pure PSV Reaction
L16
L5-L2
OCC
Pure PSV Reaction
L17
L6-L2
OCC
Pure Wind
L18
L7-L2
OCC
Pure Wind
L19
L8-L2
OCC
Pure Wind
L20
L9-L2
OCC
Pure Wind
L21
L10-L2
OCC
Pure Seismic
L22
L11-L2
OCC
Pure Seismic
L23
L12-L2
OCC
Pure Seismic
L24
L13-L2
OCC
Pure Seismic
L25
L15+L14
OCC
Pure Occasional+Sustained
L26
L16+L14
OCC
Pure Occasional+Sustained
L27
L17+L14
OCC
Pure Occasional+Sustained
L28
L18+L14
OCC
Pure Occasional+Sustained
L29
L19+L14
OCC
Pure Occasional+Sustained
L30
L20+L14
OCC
Pure Occasional+Sustained
L31
L21+L14
OCC
Pure Occasional+Sustained
L32
L22+L14
OCC
Pure Occasional+Sustained
L33
L23+L14
OCC
Pure Occasional+Sustained
L34
L24+L14
OCC
Pure Occasional+Sustained
L35
L3-L14
EXP
Pure Expansion
L36
L2-L14
EXP
Pure Expansion
Table 1: PSV Piping System Stress Analysis Load Cases
Output Study:
Check Code stresses for load cases L1, L14, and L25 to L36. It is better to keep stresses for L1 and L14 below 60% and for the rest within 80%.
It is a better practice to use 3-way restraints in both inlet and outlet piping of PSV-connected systems if feasible (As shown in figures 2 and 3 above). However if not possible then try to provide a 3-way restraint in the outlet only by layout modification.
In a normal operating case Safety valve inlet line temperature will be operating temperature up to the inlet of the safety valve and the Safety valve outlet line will be in ambient temperature up to the header.
Sometimes a Dynamic Load Factor (DLF) of 2 is used for calculating PSV reaction force.
If any stress failure or abnormal routing changes are required, then a certain local area from the header can be used at an average temperature of 2 meters or 5D which is higher (Safety valve outlet joining at header junction point) and also shall be taken process engineer’s approval.
If the connection of the PSV closed system is emerging from the header with 45˚ put SIF for this tapping. If required tapping point of the outlet line and outlet header shall be reinforced to reduce SIF.
In case any safety valve assembly is placed on the top platform of any vessel, Support can be taken either from the top platform or support can be arranged from the top portion of the vessel taking a clip from the vessel. In both cases, the load and locations of support or clip equipment vendors must be informed through the mechanical group along with the clip information.
Do not provide a spring below the safety valve inlet line
